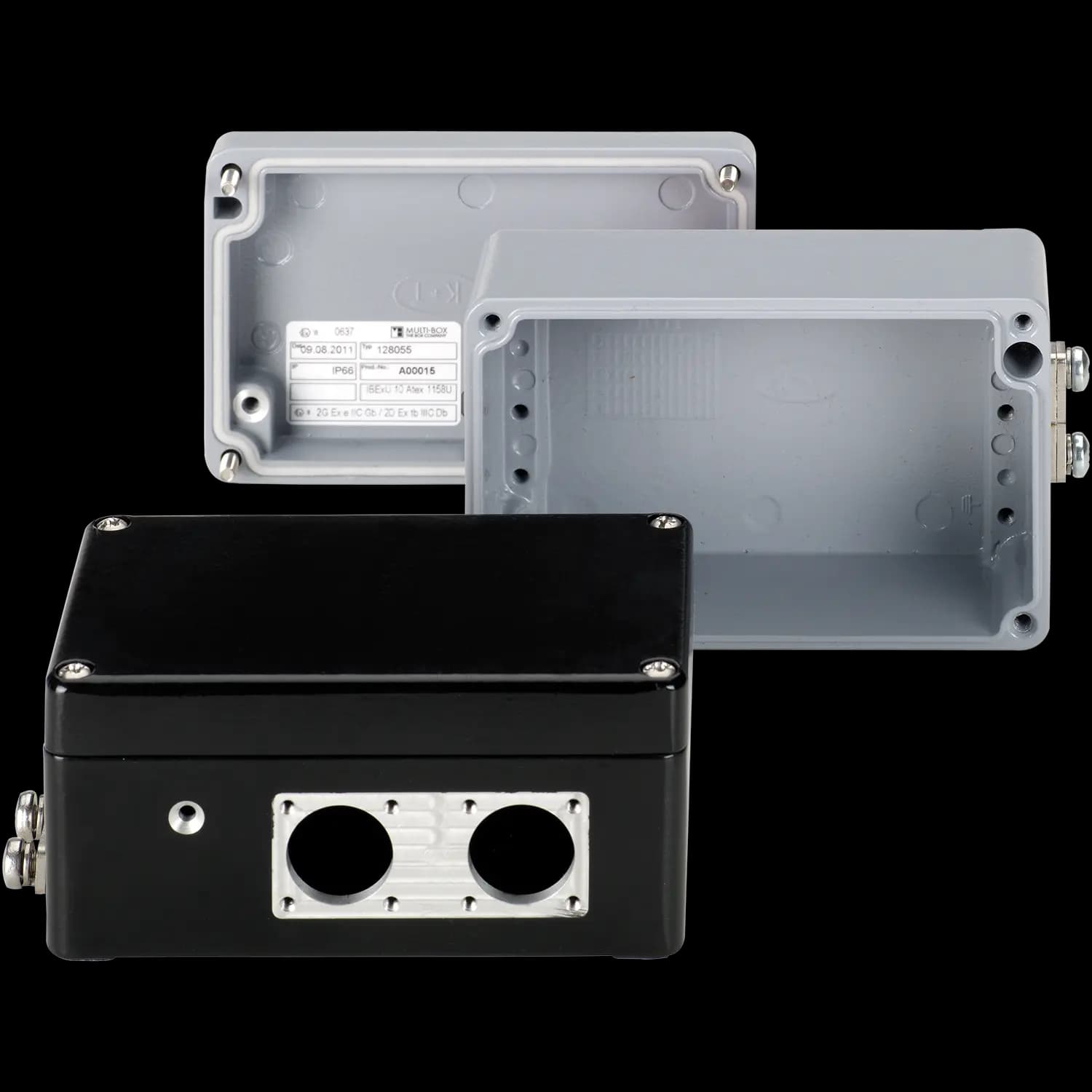

Aluminium Ex-empty Enclosures

Material cover: Aluminium

Material base: Aluminium

Material sealing: Silicone

Material screws: Stainless Steel V2 A

Silicone-free: No

Halogen-free: Yes

UV-resistant: Yes

Surface coating: Powder coating

Article no.	Type	Length	Width	Height
3111100200	MBA-Ex empty 606030	58 mm	64 mm	34 mm
3111100400	MBA-Ex empty 906030	98 mm	64 mm	35 mm
3111100600	MBA-Ex empty 156030	150 mm	64 mm	34 mm
3111100900	MBA-Ex empty 708055	75 mm	80 mm	57 mm
3111101100	MBA-Ex empty 128055	125 mm	80 mm	57 mm
3111101300	MBA-Ex empty 178055	175 mm	80 mm	57 mm
3111101400	MBA-Ex empty 258050	250 mm	80 mm	54 mm
3111105500	MBA-Ex empty 101080	100 mm	100 mm	80 mm
3111106500	MBA-Ex empty 161080	160 mm	100 mm	80 mm
3111106600	MBA-Ex empty 201080	200 mm	100 mm	80 mm
3111101600	MBA-Ex empty 121265	122 mm	120 mm	65 mm
3111101800	MBA-Ex empty 121280	122 mm	120 mm	80 mm
3111101900	MBA-Ex empty 121290	122 mm	120 mm	90 mm
3111102000	MBA-Ex empty 221265	220 mm	120 mm	65 mm
3111102200	MBA-Ex empty 221280	220 mm	120 mm	80 mm
3111102300	MBA-Ex empty 221290	220 mm	120 mm	90 mm
3111102400	MBA-Ex empty 361280	360 mm	122 mm	80 mm
3111104500	MBA-Ex empty 141490	140 mm	140 mm	90 mm
3111107500	MBA-Ex empty 181490	180 mm	140 mm	90 mm
3111108500	MBA-Ex empty 201490	200 mm	140 mm	90 mm
3111102500	MBA-Ex empty 161690	160 mm	160 mm	90 mm
3111104000	MBA-Ex empty 261665	260 mm	160 mm	65 mm
3111102600	MBA-Ex empty 261690	260 mm	160 mm	90 mm
3111102800	MBA-Ex empty 361690	360 mm	160 mm	90 mm
3111029000	MBA-Ex empty 561690	560 mm	160 mm	90 mm
3111103000	MBA-Ex empty 202311	200 mm	230 mm	110 mm
3111103100	MBA-Ex empty 282311	280 mm	230 mm	110 mm
3111103202	MBA-Ex empty 332311	330 mm	230 mm	110 mm
3111103300	MBA-Ex empty 332318	330 mm	230 mm	180 mm
3111103400	MBA-Ex empty 402311	400 mm	230 mm	110 mm
3111103700	MBA-Ex empty 602311	600 mm	230 mm	110 mm
3111103500	MBA-Ex empty 403111	400 mm	310 mm	110 mm
3111103600	MBA-Ex empty 403118	400 mm	310 mm	180 mm
3111103800	MBA-Ex empty 603111	600 mm	310 mm	110 mm
3111103900	MBA-Ex empty 603118	600 mm	310 mm	180 mm
